- SparkFun Logic Level Converter - Bi-Direction...
0 ratings
Item #:
94709024
SparkFun Logic Level Converter - Bi-Directional Step Down 5V Signals to 3.3V and Steps up 3.3V to 5V Board Dimensions: 0.63 x 0.52 (16.05 x 13.33mm)
Item #:
94709024
USD 5
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from US
In stock
Imported from USA store
QTY:
Order now and get it around Thursday, June 25
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
The SparkFun bi-directional logic level converter safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time.
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Note: Step 1 Voltage Transformer required for using electronics products of US store (110-120). Recommended power converters Buy Now.
What Stands Out
Bi-Directional Conversion
Easily step up 3.3V to 5V and step down 5V to 3.3V signals, ensuring compatibility between various devices without damage or signal loss.
Compact Size
With dimensions of 0.63 x 0.52 inches, this converter is space-efficient, making it ideal for projects with limited space while maintaining functionality.
Easy Integration
The Logic Level Converter integrates seamlessly with Raspberry Pi, Arduino, and other boards, simplifying connections and enhancing project versatility.
Product Details
- The SparkFun bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time.
- The SparkFun bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices.
- The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the 'HV' pin, low voltage (3.3V for example) to 'LV', and ground from the system to the 'GND' pin.
- What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel.

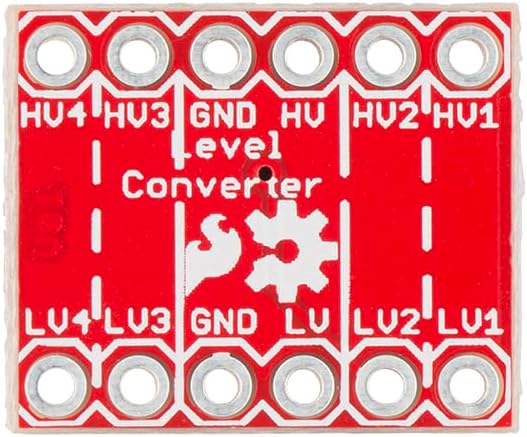

- Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. Board Dimensions: 0.63 x 0.52" (16.05 x 13.33mm)
| Minimum Supply Voltage | 1.8 Volts (DC) |
| Number of Pins | 8 |
| Number of Channels | 8 |
| Smart Home Compatibility | Not Smart Home Compatible |
| Brand Name | SparkFun |
| UPC | 845156006670 |
| Compatible Devices | Electronic devices operating at 3.3V, 2.8V, or 1.8V |
| Manufacturer | SparkFun Electronics |
| Part Number | BOB-12009 |
| Model | BOB-12009 |
| Unit Count | 1.0 Count |
| Brand | SparkFun |
| Item Weight | 0.1 lbs (50 grams) |
Who Should Buy?
-
Hobbyist Developers
Ideal for hobbyists working on projects requiring communication between 3.3V and 5V logic devices.
-
Microcontroller Users
Perfect for users integrating 3.3V MCUs with 5V peripherals, ensuring compatibility between different voltage levels.
-
Prototype Designers
Useful for designers building prototypes that need flexible voltage level shifting during testing and development.
-
High-Speed Applications
Not suitable for applications requiring fast signal switching speeds beyond the performance capabilities of this converter.
-
High-Power Devices
Doesn't support high current applications; it's designed for low-power logic level shifting only.
-
